ربات کنترلی هوشمند Futaba RBT

 ربات کنترلی هوشمند Futaba RBT
[20 بهمن 1390 ساعت 17:16] ربات.Robot > ربات کنترلی هوشمند Futaba RBT

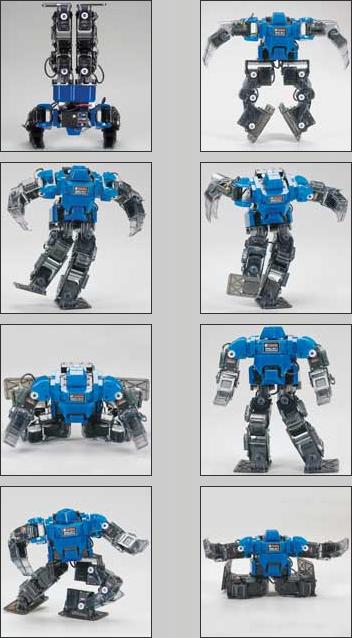

Futaba RBT-1 - pre-built

  • fast servos, fast body movements, Ready To Walk
  • 20 servos – four more than similar robots – give it more motion options
  • FASST 2.4GHz radio signals direct the servos, for smoother, quicker and more precise control
  • All electronics – plus the rechargeable, high-capacity 7.4V LiPo battery – are located in the torso for easy access
  • LED "eyes" add to the humanoid appearance and a self-righting function keeps the robot from falling down on the job
  • Graphical software with motion editor allows you to program Futaba
  • Features:
    - Fully assembled and controlled by 20 small servos, RPU-11 Processing
      Unit and RRC-T11 controller
    - RPU-11 Processing Unit with rotary switch to change modes such as
      Edit Mode (to make and edit motions with ME) Automatic Mode (to
      play motion inputted automatically) Operating Mode (to control robot
      with wireless controller) and much more
    - Tri-Axial Acceleration Sensor allows robot to distinguish posture to ground
      in order to get up from falls and more
    - 3DCG Motion Editor software allows viewing robot motions on Windows PC
    - Motions can be created by moving mouse or inputting numbers, no
      programming needed
    - Basic motion such as walking pre-inputted into the Motion Editor allowing
      original operation by editing sample motion
    - Eleven RS301CR high torque metal gear servos control leg movement
    - Nine lightweight RS302CD servos control upper body movement
    - Game pad type controller with wireless 2.4GHz technology can be "paired"
      to the robot so that instruction from other controllers is not accepted.
      This allows up to 16 controllers to be used at once.

    Includes these pre-programmed actions and more:
    Walk, Run, Turn, Kick, Wave, Bow, Headstand, Toe-stand, Splits, Forward flip, Backward flip, Sommersault, Balance on one leg, Dance, Martial arts moves, Jumping

    Height:
    10 inches (25.5cm)

    What's in the Box:
    Assembled RBT-1 humanoid robot
    RPU-11 processing unit
    RRC-T11 2.4GHz transmitter (Playstation-style remote)
    RRC-R11 receiver
    PR-4S780P 7.4V Lithium Polymer battery
    Graphical Motion Editor Software
    Manuals

Price:

$1,599.99
