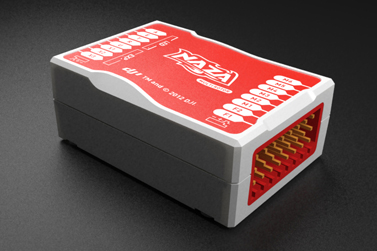

Dji NAZA multi-axis control platform

اوتو پایلوت

INCLUDED:

1 x Naza multi-axis control
1 x Naza BEC/Lite LED Module
1 x Wire servo connector
1 x USB Cable

NAZA is a lightweight multi-axis control platform specially designed for aeromodel hobbyists. It is a smalled all-in-one module includes controller, gyroscope, accelerometer and barometer. It has D-Bus support, upgrade support, and extendible port.

Different from WKM for heavy payloads and aerophotography, NAZA not only inherits outstanding flight stability of DJI products, but also provides excellent maneuverability, which gives hobbyists wonderful flight experience.

General

- Autopilot
- Auto Level Fail-safe
- Low Voltage Protection
- S-Bus Receiver Support
- 2-axle Gimbal Support

- Supported Multi-rotor: Quad-rotor I, X; Hex-rotor I, V, Y, IY
- Minimun Channel: 4
- Supported ESC output 400Hz refresh frequency

Electrical &Mechanical

- Working Voltage Range MC:4.8V~5.5V / VU: 7.2V ~ 26.0 V (recommend 2S ~ 6S LiPo)
- Power Consumption MAX 1. 5W (0.3A@5V) / Normal:0.6W (0.12A@5V)
- Operating Temperature -10°C ~ 50°C
- Weight MC:25g
- Weight VU:20g
- Dimensions MC: 45.5mm x 31.5mm x 18.5mm
- Dimension VU: 32.2mm x 21.1mm x 7.7mm

Flight Performance

- Max Yaw Angular Velocity 200° /s
- Max Tilt Angle 45°
- Ascent / Descent ±6m/s

All-in-One designAll- in-One Design integrates inner damping, controller, gyroscope, accelerometer and barometer, which simplifies installation and saves space.

Advanced attitude stabilization algorithm- Advanced mix guidance algorithm and control algorithm, inherits outstanding flight stability of DJI products, provides excellent maneuverability, gives hobbyists wonderful flight experience.

Low voltage protectionTwo- Level low voltage protection. low voltage LED alarm, and automatic landing.

D-BUSD- Bus supports S-BUS receiver system

2-axis Gimbal Stabilization- The gimbal stabilization module is compatible with almost all 2-axis gimbal systems. The system will adjust the gimbal and camera according to the attitude of the helicopter after setting the parameters the first time.

Upgradeable and extendible- Easy firmware upgrade, extendible port for future use is available
