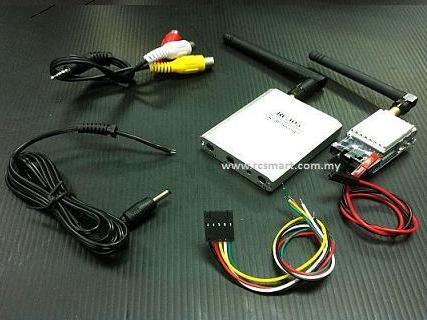

انتقال دهنده تصویر
Output impedance: 50Ohm
Output power: 21~23dBm
Channel frequency 1~8: 5705/5685/5665/5645/5885/5905/5925/5945mhz.
Transmitter operating voltage: 7~15VDC / 150mA
Receiver operating voltage: 5VDC
Operating temp: -10~85C
Video bandwidth: 0~8.0MHz
Audio frequency: 6.5MHz
Video input level: 0.8~1.2Vp-p
Video input impedance: 75Ohm
Audio input level: 0.5~2.0Vp-p
Audio input impedance: 10K/Ohm
Weight: 25g
Antenna connector: SMA
Dimensions: 55x26x17mm
