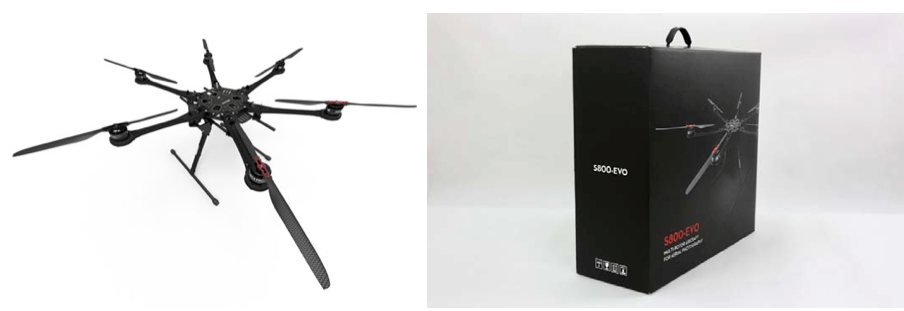

فریم  هگزا کوپتر

Specifications:

Frame
Diagonal Wheelbase 800mm
Frame Arm Length 350mm
Frame Arm Weight (with Motor, ESC, Propeller) 356g
Center Frame Diameter 240mm
Center Frame Weight 550g
Landing Gear Size 460mm(Length)×425mm(Width)×320mm(Height) (Top width: 155mm)
Retractable Landing Gear Weight (Including Battery Tray) 1050g

Motor
Stator Size 41×14mm
KV 400rpm/V
Max Power 500W
Weight (with Cooling Fan) 158g

ESC
Current 40A OPTO
Voltage 6S LiPo
Signal Frequency 30Hz ~ 450Hz
Drive PWM Frequency 8KHz
Weight (with Radiators) 35g

Propeller (Foldable)
Material Carbon Fiber
Size 15×04 in
Weight 10g

Flight Parameters
Takeoff Weight 6.0Kg ~ 8.0Kg
Total Weight 3.7Kg
Power Battery LiPo (6S, 10000mAh~15000mAh, 15C(Min))
Max Power Consumption 3000W
Hover Power Consumption 800W(@ Takeoff Weight 6.7Kg)
Hover Time Max: 20 min (@15000mAh & 6.7Kg Takeoff Weight)
Working Environment Temperature -10 to +40 oC
