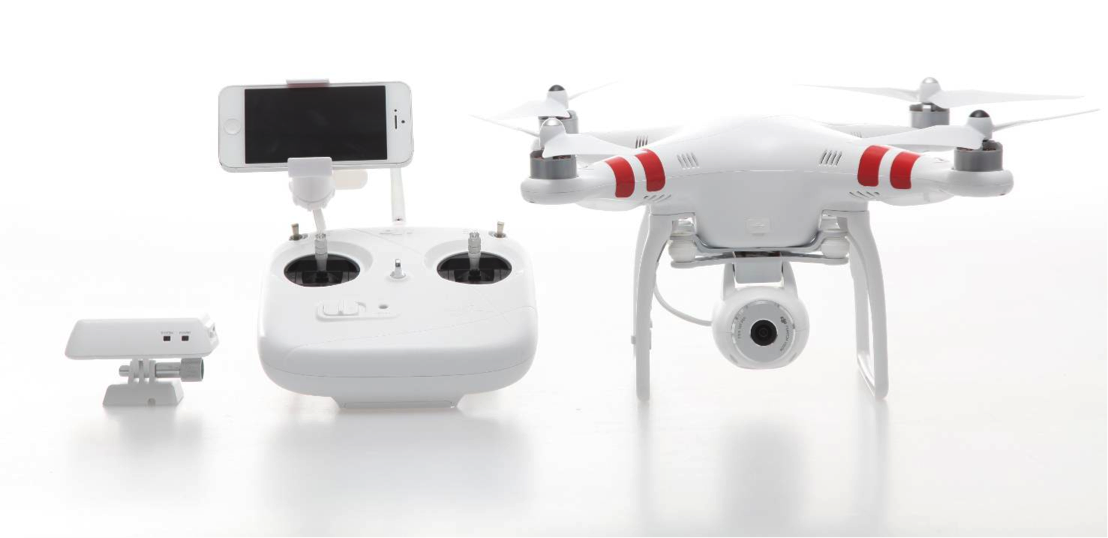

PHANTOM 2 VISION

PHANTOM 2 VISION
[7 بهمن 1392 ساعت 21:59] GIMBAL مانت دوربین . مولتی روتور Multi Rotor > PHANTOM 2 VISION
General Features
  • Lightweight, multi-functional integrated aircraft and camera
  • Camera remote-control by DJI VISION App
  • Range Extender increases Wi-Fi distance to 300m
  • Anti-vibration camera platform with single axis stabilisation
  • Low-voltage protection
  • Virtual Radar aircraft locator on mobile device
  • Range of camera tilt options
  • Multiple, continuous and timed capture options
  • HD Video Recording (1080/p30 or 1080/60i)
  • RAW and JPEG picture formats
Aircraft Battery PHANTOM 2 VISION Weight Hover Accuracy (Ready to Fly) Max Yaw Angular Velocity
5200mAh LiPo 1160g Vertical:0.8m; Horizontal: 2.5m 200°/s
Max Tilt Angle Max Ascent / Descent Speed Max Flight Speed Diagonal Length
35° 6m/s 15m/s (Not Recommended) 350mm
Tilting Range of Gimbal
0°-60°
Transmitter Operating Frequency Communication Distance（open area） Receiver Sensitivity（1%PER） Transmitter Power
5.728GHz－5.8GHz CE: 300m; FCC: 500m -93dBm CE: 25mw; FCC: 125mw
Working Voltage Battery
80 mA@6V 4 AA Batteries
Camera Resolution FOV Sensor size Functionality
14 Megapixels 140 °/ 120° / 90 ° 1/2.3
  • Support of multi-capture, continuous capture and timed capture
  • Support of HD Recording (1080/p30 or 1080/60i)
  • Supports of both RAW and JPEG picture format
Range Extender Operating Frequency Communication Distance（open area） Transmitter Power Power Consumption
2412-2462MHz 300m <=17dBm 1.5W
DJI VISION App System Requirement of Mobile Device Mobile Device Support
iOS version 6.1 or above/ Android system version 4.0 or above Recommended: iPhone4s, iPhone5, iPhone5s, iPod Touch4, iPod Touch5;
available but not recommended:iPAD3, iPAD4, iPAD mini.
Samsung Galaxy S3, S4, Note2, Note3or phones of similar configuration
