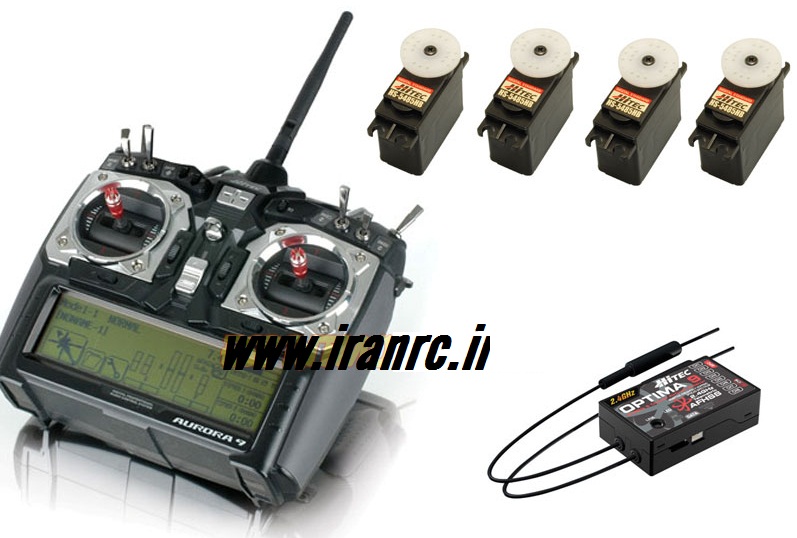

Htec 2.4GHz Aurora 9, Rx Optima 9

Htec 2.4GHz Aurora 9, Rx Optima 9
[20 بهمن 1392 ساعت 16:19] رادیو کنترل آرسی .Radios > Htec 2.4GHz Aurora 9, Rx Optima 9

 More information (links):
* Aurora 9 Instruction Manual (.pdf)

Hitec is proud to introduce our new flagship radio the Aurora 9. The Aurora 9 is a "Pure Digital" 2.4GHz system offering an extremely low latency response time for that "connected" feeling. Featuring a large backlit 5" (127mm) Touch screen display, 30 Model memory, Assignable switches and Customizable programming menus, the Aurora is a true 3 in 1 radio with sophisticated programming for sailplanes, helicopters and all kinds of power planes. With all these features and a price that can't be beat, there is no doubt the Aurora 9 will become the radio of choice for the most sophisticated pilots.

Adaptive Frequency Hopping Spread Spectrum Technology (AFHSS)
Our 2.4G system utilizes the latest AFHSS technology and our exclusive Smart Scan system to ensure a rock solid, interference free connection between the transmitter and receiver. When selected, Hitec's 2.4GHz SmartScan function scans the 2.4GHz spectrum to find the cleanest channels in which to operate therefore providing interference free operation even in the most crowded environments.

Boosted Omni Directional Antenna (BODA)
The Optima 2.4GHz line of receivers feature our exclusive BODA receiver technology. Independent testing has proven that the single BODA antenna system in our 6 & 7 channel systems is equal to or better than our competitor's dual antenna systems.

Basic Features
  • AFHSS 2.4GHz PPM/PCM Compatible
  • Easy to Read 5.1" Wide Backlit Touch Screen
  • Customizable Menus
  • One-Stop Model Type Setting
  • 3 Multi-Tasking Digital Trims
  • Fully Assignable Control Switch, Knob, Stick and Digital Trims
  • Highly Sensitive 8 Ball-Bearing Gimbals with Adjustable Tension
  • Full-Sized Comfortable Hand Grips Featuring Top Quality Elastomer
  • Selectable Control Stick Mode, Change Hardware without Opening Case
  • Power Management System (Adjustable Backlight & Auto Shut-off Time)
  • Digital Trim Nano-Adjuster (Approx. 0.025deg per step up to 5deg)
Standard Programming Features
  • 9 Assignable Control Channels
  • 3 Model Types (ACRO/GLID/HELI) Programming
  • 30 Model Memories
  • 20 Character model name
  • 8 Flight Conditions with 10 Characters
  • Throttle Lock, Fail-safe
  • Dual Rate & Exponential Rates
  • Sub-Trim, Servo Reverse, Trainer Port
  • Servo Speed (Up to 25 Seconds in Each Direction)
  • Servo Monitor (Monitor & Servo Test)
  • 8 Programmable Mixes (5 x 2-Point , 3 x 7-Point Curves)
Advanced ACRO Programming
  • 9 Wing Type, 5 Tail Types
  • Quick Model Options Select
  • Custom Functions: Dual Engine, Retract, Airbrake
  • 7 Point Throttle Curve
  • Throttle Cut, Idle Down, Fuel Mixture
  • Airbrake, Airbrake to Elevator Mix
  • Aileron to Rudder Mix, Elevator to Camber Mix
  • Rudder to Aileron Mix
  • Aileron Differential, Aileron to Flap Mix
  • Camber Mix, Flap Control
  • 3 x Gyro Sensitivity (AILE/ELEV/RUDD)
  • V-Tail, Delta Mix, Ailevator
Advanced HELI Programming
  • 6 Swash Types 90°, 120°, 140°, 180°
  • Quick Options Select
  • 7 Point Pitch, 7 Point Throttle Curve
  • Throttle Cut, Needle Control
  • Gyro Sensitivity
  • Swash to Throttle Mix
  • Rudder to Throttle Mix
  • Fuel Mixture
  • Throttle Hold
  • Swash Mix (Swash Rate/Calibration)
  • Revolution Mix
  • Governor (Three Rates)
  •



price:620$
