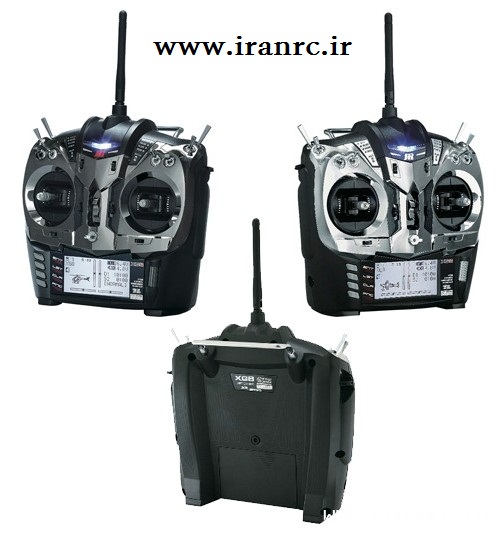

JR XG8 8-Channel 2.4GHz DMSS Radio System

JR XG8 8-Channel 2.4GHz DMSS Radio System
[22 مرداد 1393 ساعت 12:11] رادیو کنترل آرسی .Radios > JR XG8 8-Channel 2.4GHz DMSS Radio System

 JR XG8 Radio Set Key Features
- Dual Modulation Spectrum System
- Integrated Helicopter, Airplane and Glider mode.
- 30-model internal memory
- Large graphical screen with backlight
- Extremely light weight transmitter case with perfect balance.
- It only weighs 770 grams with the Li-Fe battery installed.
- 4 user-selectable control modes (Mode 1, Mode 2, Mode 3 and Mode 4)
- Includes RG831B 8channel high-speed Receiver with an extra telemetry module.
- The new JR Intelligent Output System automatically selects which control signals should be transmitted at exactly the same time. For example, the three channels of a CCPM swash plate or a 4 servo aileron wing type. It transmits the data for these channels as one complete signal frame. Thus, there is no time delay between channel data transmission for these critical functions.
- Features the DMSS advanced telemetry system which gives you real time feed back of information from the aircraft such as receiver voltage, flight pack voltage, r.p.m. of the motor propeller or rotor blades, temperature, and variometer/altimeter in the future. The possibilities are almost limitless.
- The charging circuit is integrated in the transmitter, so you only need to plug in the AC adaptor. The charging unit automatically detects a full charge and shuts off automatically.
- AC adapter can be used for not only charging but programming, and playing with flight simulator.
- Integrated SD card slot enables model data sharing, expanded storage and software updates.
- JR advanced intuitive programming interface.
- JR Jog Dial and 4 enter key interface for easy programming.
- Side-lever controller on both side of Transmitter.
- Touch Select System for switch selection.
- 2 type of trim selection for 4 controllers. (THRO/ Normal for EP or Idol for GP) (AILE/ELEV/RUDD/ Normal or Limited Stroke Trim to protect your linkage)
- User selected menu for frequently used functions.
- Fail safe position for each 8 channel.
- User-assigned switch function
- Programmable throttle cut
- Programmable 2 independent timer.

Includes :
- 1 X JR PROPO XG8 2.4Ghz 8-channels Transmitter
- 1 X JR PROPO RG831B 2.4Ghz 8-channels Receiver w/ RA01T
- 1 X 2F1400 6.4V 1400mAh Li-Fe battery for transmitter
- 1 X JR PROPO Charger (100V-220V 2 Flat Pin)
- 1 X Thorttle Stick Plate Spring for helicopter mode
- 1 X L heaxgon driver
- 1 X Binding Plugs
- 1 X English Instruction Manual
