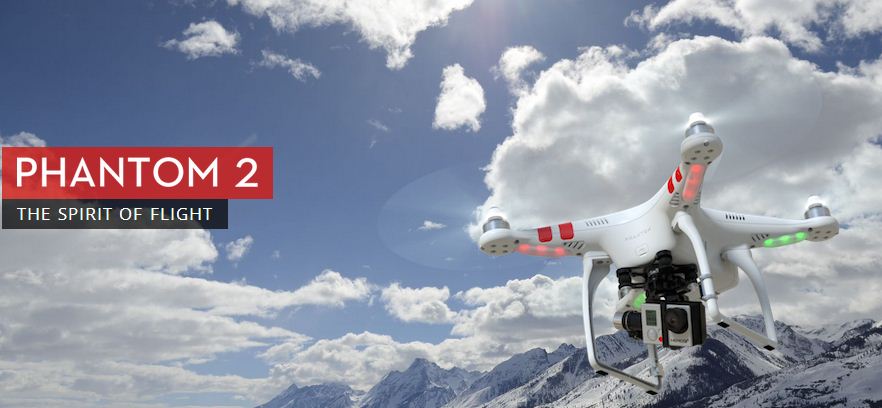

PHANTOM 2

PHANTOM 2
[8 اردیبهشت 1393 ساعت 18:04] GIMBAL مانت دوربین . مولتی روتور Multi Rotor > PHANTOM 2



General Features

  • Ready to Fly, Multifunctional Quad-rotor System
  • Customized H3-2D and H3-3D Gimbal Support
  • Precision Flight and Stable Hovering
  • 25min Flight Time & Intelligent Battery
  • Auto Return-to-Home & Landing
  • Advanced Power Management
  • Intelligent Orientation Control (IOC)
  • Easy Battery Replacement
  • Self-tightening Propeller
  • Video Downlink Support
  • CAN-Bus Expansion Module

Aircraft

PHANTOM 2 Weight (W Battery)
1000g
Hover Accuracy (Ready To Fly)
Vertical: 0.8m;
Horizontal: 2.5m
Max Yaw Angular Velocity
200°/s
Max Tilt Angle
35°
Max Ascent / Descent Speed
6m/s
Max Flight Speed
15m/s(Not Recommended)
Diagonal Length
350mm
Power Consumption
5.6W
Flight Time
25mins
Take-Off Weight
≤1300g
Operating Temperature
-10°C ~ 50°C
Supported Battery
DJI Intelligent Battery

DJI Intelligent Battery

Type
3S LiPo
Capacity
5200mAh, 11.1V
Charging Environment Range
0℃ to 40℃
Discharging Environment Range
-20℃ to 50℃

2.4GHz Remote Control

Operating Frequency
2.4GHz ISM
Communication Distance (Open Area)
1000m
Receiver Sensitivity (1%PER)
-97dBm
Working Current/Voltage
100 mA@6V
Battery
4 AA Batteries
