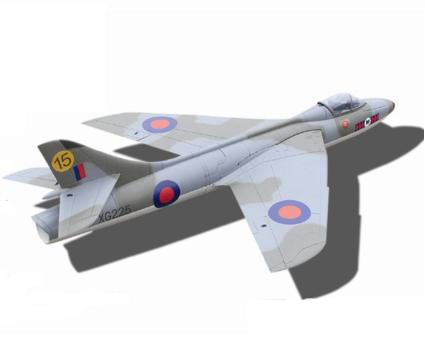

FlyFly Hawker Hunter Plane Only With 92mm Ducted Fan

FlyFly Hawker Hunter Plane Only With 92mm Ducted Fan
[3 تیر 1393 ساعت 18:10] هواپیمای کنترلی الکتریکی.Air planes electric > FlyFly Hawker Hunter Plane Only With 92mm Ducted Fan

 jet

Specification :

Material : EPO
Wingspan : 1112mm ( 43.78" )
Length : 1507mm ( 59.33" )
Height : 535mm (21.06")
Wing Area : 52dm sq.
Airfoil : RG-14.
Flying weight : 2,550g (with air retract landing gear , 6 cells )

Power system :



Fan unit :  92mm (Include)
Motor :  1200 - 1600kv (Shaft dia 5mm)  (Not Include)
ESC :  80 - 110A w/BEC  (Not Include)
Battery:  Li-Po 22.2v - 29.6v ( 6 - 8 cells), 3400 - 5000mAh, 25 - 35C  (Not Include)

Control system :


Radio :  4 - 6 channel (Not Include)
Servo :  Micro servo (8g) x 5, torque > 2.2kg (Not Include)
Landing gear : Fixed (Include)
