Motor 2212-13 1000KV BRUSHLESS

Motor 2212-13 1000KV BRUSHLESS
[14 مرداد 1393 ساعت 22:32] GIMBAL مانت دوربین . مولتی روتور Multi Rotor > Motor 2212-13 1000KV BRUSHLESS

موتور براشلس برای کواد کوپتر و هگزاکوپتر

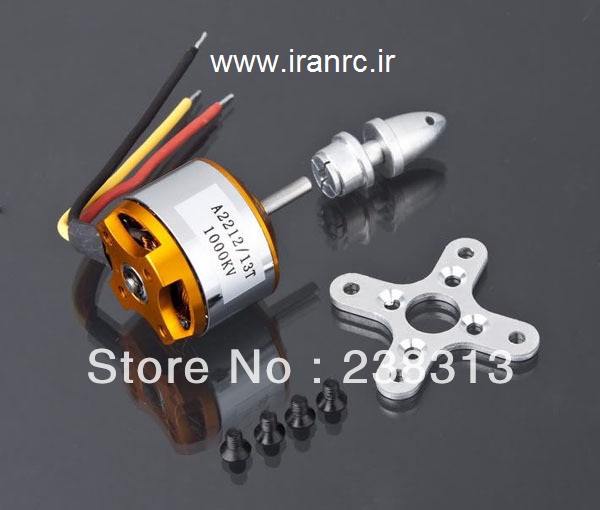

2212-13 1000KV BRUSHLESS OUTRUNNER MOTOR

These are perfect motors for the Gaui 330X or Snap Quad size frame.  Use with 8 or 9" props with a quad.  Included in the package is a backmount, prop adapter and three female 3.5 mm bullet connectors (Male set already soldered on motor).

A2212/13
Ni-MH cells: 6-10
Li-Poly cells: 2-3
RPM/V: 1000 KV
Max Efficiency Current: 4 - 10 A (>75%)
NoLoad Current/10V: 0.5 A
Current Capacity: 12A/ 60 s
Max Efficiency: 80%
Shaft Diameter: 3.17 mm
Weight With Cables: 47 g
Internal Resistance: 105 MilliOhms
Dimensions: 27.5 mm x 30 mm
Recommended Model Weight: 300-800 grams
Recommended prop without gearbox: 10" x 5" or smaller
