موتور براشلس برای عمود پروازها

Description

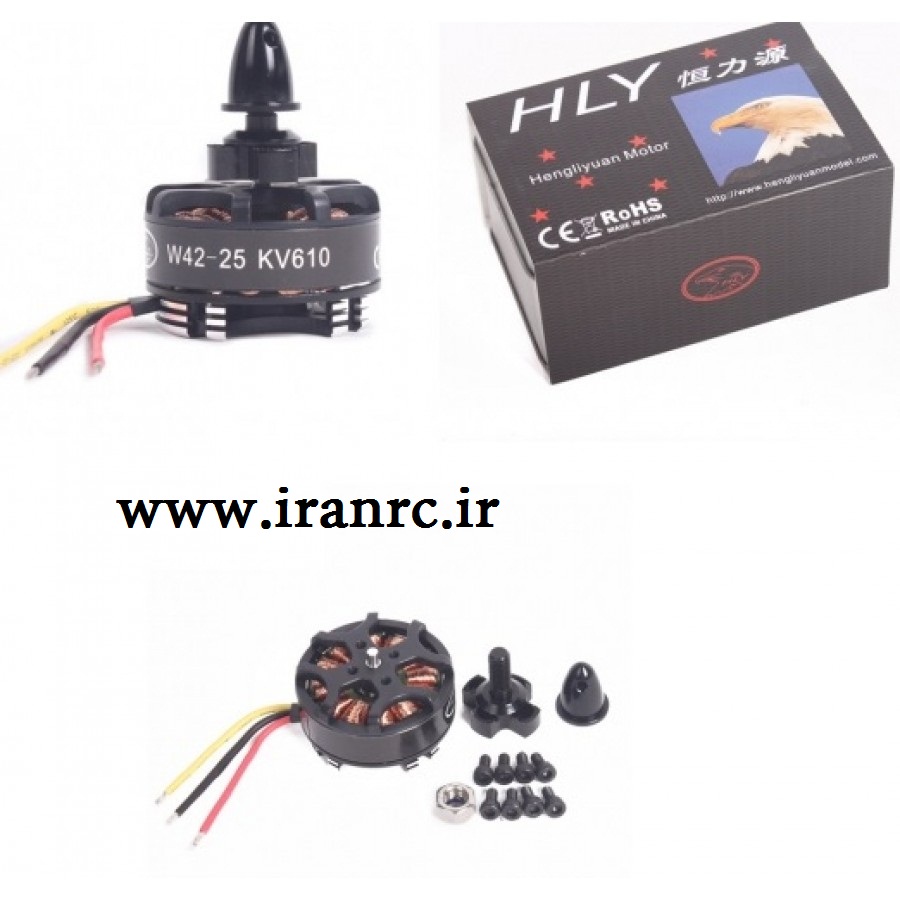

KV610 Brushless Outrunner Disk Motor 4225 for RC Quadcopter, Multicopter

Specifications:

KV Value:  610

Motor Diameter:  42mm

Motor Length:  25mm

Shaft Diameter:  6mm

Pole Number:  16 poles

No Load Current:  0.3A/ 7.4V

Net Weight:  87g

Support Lipo Cell:  4S

Max. Burst Current:  22A

Working Current:  <16A

Max. Power:  330W

Internal Resistance:  0.091ohm

Recommended Propeller:  12*3.8

Banana plugs not included, suggest welding with ESC plug

Features:

HL Disk Type motors specially designed for multi-rotor aircrafts

Utilizing 0.2mm Silicon steel sheets

Well balanced at factory, ensures maximum efficiency and low noise

Higher g/w ratio, very good choice for multi-rotor application

Package Lists:

1 *W4225-610KV Disk Motor

1 *Propeller Adaptor

4 *Screws for Propeller Adaptor
