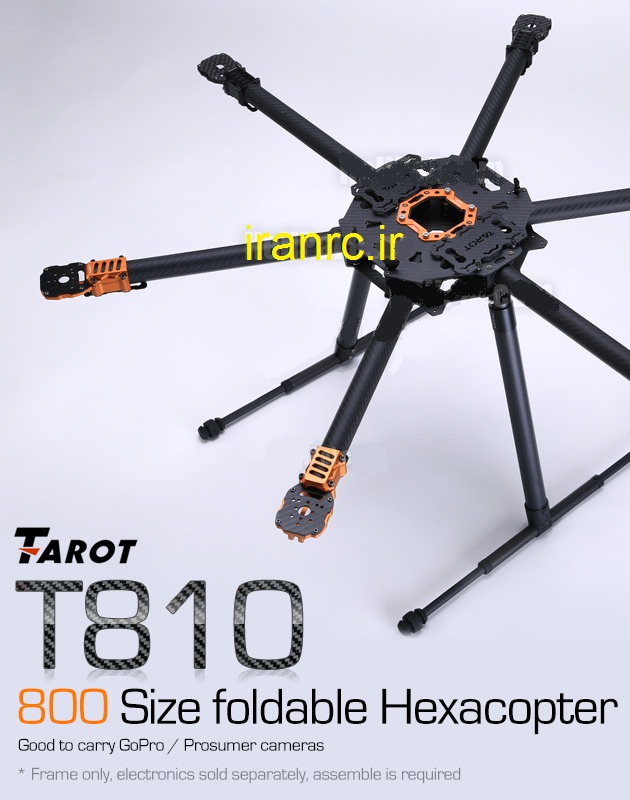

Specifications : - Frame weight : 1020g - Arms diameter : 25mm - Drone dia : 810mm - End to end : 850mm - Center body dimension : 210 x 210 x 2.0mm - Mount mounting hole : 16mm / 19mm / 25mm / 27mm triangular shaped mounting - Drone's weight (everything it needs to fly) : around 4.3kg - Drone's all-up-weight (when it lift the ground with payload) : around 4.5~6kg - Payload (it can carry) : 1.5~2kg Our Flight Reference : - Battery Supply : 6S 22.2V, 5000mah for 7-8 minutes, 10000mah for 13~15 minutes - Motor : Tarot 4114 320kv Motor - ESC : Hobbywing Platinum 30A-OPTO or 40A-OPTO - Propeller : Tarot 1555 Propellers - Flight Controller : NAZA V2 / DJI WooKong / DJI A2 - Radio Set : Futaba 8FG (we used 8-ch receiver) - Carrying : Brushless Motor Gimbal, TS352 FPV System, GoPro Hero 3 (They weight about 700g) - Remarks : Remember to use BEC module to power up the Flight Controller (11.1V) and Receiver (5V) since you are using 22.2V battery pack, and get some extra electric cables, JST plugs, T-Join or XT60 plugs to connect the drone. This package includes : 1. 1 X T810 Frame 2. 1 X 6-in-1 Power Line Hub 3. 2 Pairs of Velcro Tape (for battery) 4. 1 X TL96013 Folding Landing Skids
