Overview:

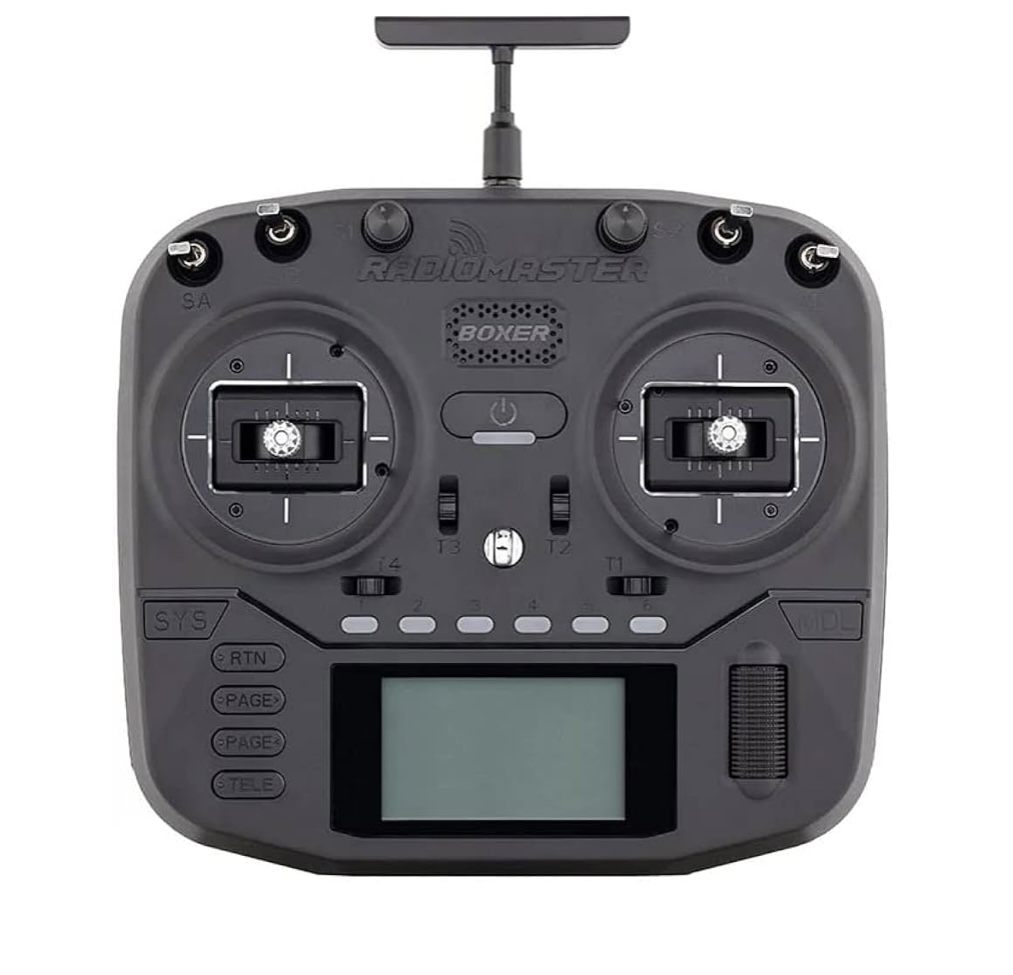

The Radiomaster Boxer transmitter is the perfect combination of size and ergonomics, making the BOXER an ideal choice for pilots on the go. Featuring full-size hall gimbals for precision control and an intuitive button layout, the BOXER gives you a compact radio without compromising comfort and functionality.
This version is the ELRS module one with EU LBT-compliant firmware (100mW output). If you require additional protocols, the firmware is upgradeable – the hardware itself is not restricted.
** HobbyRC is the only official Radiomaster UK Retail & Repair Agent. Rest assured, these are genuine transmitters backed by a full UK guarantee should a fault occur within the warranty period.**
** Requires 2x 18650 cells OR LiPo battery to function (see Related Products below). **
Features:
– Built-in ELRS module
– Featuring a powerful STM32VGT6 processor with 1MB RAM
– Preinstalled EdgeTX firmware
– QC3.0 fast charging support 2.0A MAX
– Compact design with excellent ergonomics
– New low-profile latching SE switch and momentary SF switch
– Oversized battery compartment – Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
– Full sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals
– Standard JR module compartment
– RadioMaster standardized button layout
– Versatile 6-position switch for flight mode access
– Adjustable and Removable T-shape Antenna
– Industry first fabric handle for improved portability
– Changeable, ergonomic grips
– Redesigned SD card slot with pre-loaded SD card included
– External module power slots in battery cover
– RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
TX16s Specifications:
– Item: BOXER Radio
– Size: 235*178*77mm
– Weight: 532.5g
– Frequency: 2.400GHz-2.480GHz
– Internal RF Options: ELRS Module (EU LBT)
– Supported protocols: Module dependent (Note this ships EU LBT compliant, so will require firmware updates if you are in a region that allows the full transmission power to be used)
– Transmitting Power ExpressLRS: Max 30dBm (international) / Max 20dBm (EU LBT)
– Voltage Range: 6.6-8.4V DC
– Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module)
– Channels: Max 16 channels (Receiver dependent)
– Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
– Display: 128*64 Monochrome LCD display
– Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
– External module: JR/FrSKY/Crossfire compatible
– Upgrade Method: USB/SD card & EdgeTX Companion PC software
Included:
– 1x Radiomaster Boxer Transmitter (ELRS) (Mode 2)
– 1x Signature Carry Case
– 1x T Antenna
– 1x USB-C Cable
– 1x Gimbal Protector
– Accessories
