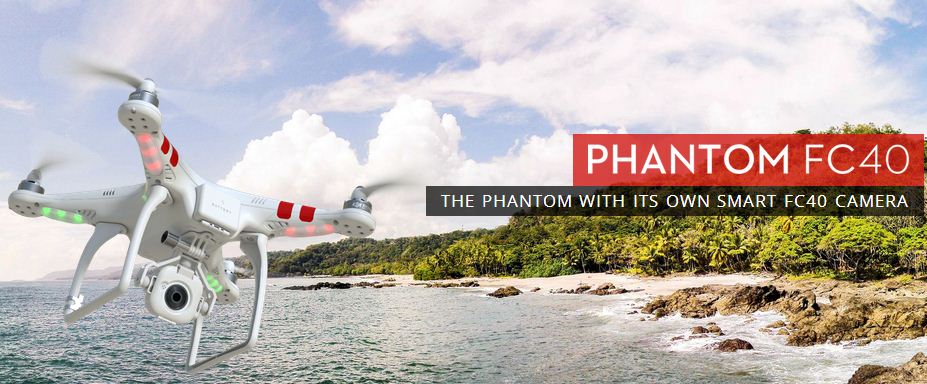

PHANTOM FC40

PHANTOM FC40
[8 اردیبهشت 1393 ساعت 18:06] GIMBAL مانت دوربین . مولتی روتور Multi Rotor > PHANTOM FC40



General Features
  • With new 5.8G Remote Control and Receiver
  • Featherweight 2.4G Wi-Fi Camera With 720p/30fps HD Video
  • User Friendly Smartphone App For First Person View(FPV)
  • 10x Digital Zoom Function While In FPV
  • Low Latency Live Preview
  • Remote Control Mobile Phone Capture
  • Capture Images & Record Video While Flying
  • In-phone Album Synchronization

Basic Parameters
Operating Temperature
-10°C ~ 50°C
Power Consumption
3.12W
Take-Off Weight
<1200g
Hovering Accuracy (GPS Mode)
Vertical: 0.8m
Horizontal: 2.5m
Max Yaw Angular Velocity
200°/s
Max Tilt Angle
35°
Max Ascent / Descent Speed
6m/s
Max Flight Velocity
10m/s
Diagonal Distance (Motor Center To Motor Center)
350mm
Phantom Prop Guard
Weight(Single):18.7g
Size(Single): Angle(155.0°) Radius(112.32mm)
Whole Size with Four Prop Guards: 575.5mm

ESC Sound Introduction
Ready
♪1234567
Throttle Stick Is Not At Bottom
BBBBBB…
Input Signal Abnormal
B——–B——–B…
Input Voltage Abnormal
BB—BB—BB—BB…

Charger & Battery Parameters
Charger AC Input
100-240V
Charge Current
1A/2A/3A
Current Drain For Balancing
200mA
Power
20W
Battery Type
LiPo

Transmitter
Working Frequency
5.8GHz ISM
Communication Distance (Open Area)
CE: 300m; FCC: 500m
Receiver Sensitivity（1%PER）
-93dBm
Transmitter Power
CE: 25mw; FCC: 125mw
Working Current /Voltage
80 mA@6V
Battery
4 AA Batteries

FC40 Camera
Image Sensor
HD 720p/30fps
Lens
Aperture F2.2
FOV
100 Degree Wide Angle
Focal Range
25cm-infinity
Wireless
IEEE 802.11 b/g Compliance
Wireless Mode
Direct Mode
Mobile Wi-Fi Video Size
WQVGA
Battery
Built-in 700 mAh Li-on Battery
