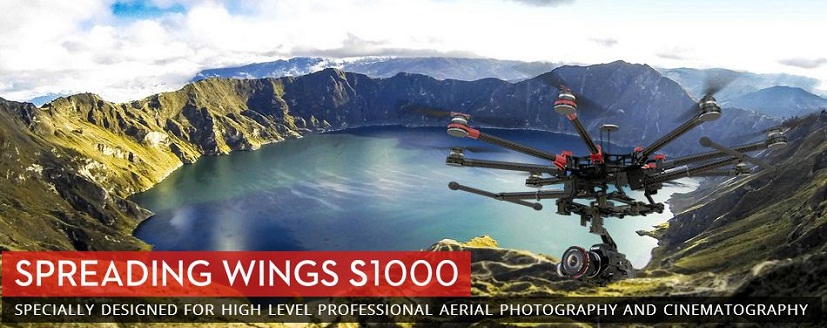

spreading-wings-s1000

spreading-wings-s1000
[8 اردیبهشت 1393 ساعت 19:28] GIMBAL مانت دوربین . مولتی روتور Multi Rotor > spreading-wings-s1000



Frame
Diagonal Wheelbase
1045mm
Frame Arm Length
386mm
Frame Arm Weight
(Including Motor, ESC, Propeller )
325g
Center Frame Diameter
337.5mm
Center Frame Weight (With Landing Gear Mounting Base, Servos)
1330g
Landing Gear Size
460mm (Length) ×511mm (Width) ×305mm (Height), (Top width: 155 mm)

Motor
Stator Size
41×14mm
KV
400rpm/V
Max Power
500W
Weight(With Cooling Fan)
158g

ESC
Working Current
40A
Working Voltage
6S LiPo
Signal Frequency
30Hz ~ 450Hz
Drive PWM Frequency
8KHz
Weight(With Radiators)
35g

Foldable Propeller (1552/1552R)
Material
High strength performance engineered plastics
Size
15×5.2inch
Weight
13g

Flight Parameters
Takeoff Weight
6.0Kg ~ 11.0Kg
Total Weight
4.2Kg
Power Battery
LiPo (6S、10000mAh~20000mAh、15C(Min))
Max Power Consumption
4000W
Hover Power Consumption
1500W (@9.5Kg Takeoff Weight)
Hover Time
15min (@15000mAh & 9.5Kg Takeoff Weight)
Working Environment Temperature
-10 °C ~ +40 °C
