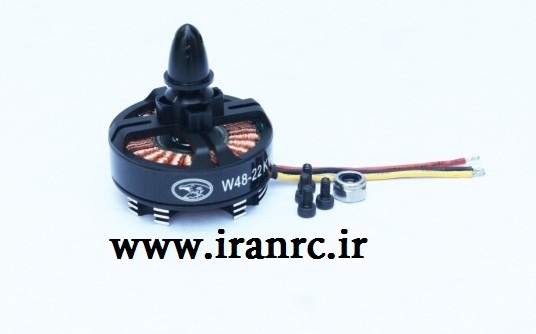

موتور براشلس برای مولتی روتور

 W4822-390 Motor:

²  KV Value:  390

²  Motor Diameter:  47.5mm

²  Motor Length:  22mm

²  Shaft Diameter:  6mm

²  Pole Number:  22 poles

²  No Load Current:  0.25A/ 7.4V

²  Net Weight:  98g

²  Support Lipo Cell:  6S

²  Max. Burst Current:  15A

²  Working Current:  <11A

²  Max. Power:  300W

²  Internal Resistance:  0.17ohm

²  Recommended Propeller:  12*3.8, 13*4

²  Banana plugs not included, suggest welding with ESC plug

W4822-690 Motor:

²  KV Value:  690

²  Motor Diameter:  47.5mm

²  Motor Length:  22mm

²  Shaft Diameter:  6mm

²  Pole Number:  22 poles

²  No Load Current:  0.85A /7.4V

²  Net Weight:  98g

²  Support Lipo Cell:  4S

²  Max. Burst Current:  22A

²  Working Current:  <16A

²  Max. Power:  320W

²  Internal Resistance:  0.052ohm

²  Recommended Propeller:  12*3.8

²  Banana plugs not included, suggest welding with ESC plug

Features:

²  HL Disk Type motors specially designed for multi-rotor aircrafts

²  Utilizing 0.2mm Silicon steel sheets

²  Well balanced at factory, ensures maximum efficiency and low noise

²  Higher g/w ratio, very good choice for multi-rotor application

Package Lists:

²  1 *Disk Motor

²  1 *Propeller Adaptor

²  1 *Propeller Mount

²  1 *Sticker

²  1 *Metal Packing Box

²  4 *Motor Mounting Screws
