Specification:
- KV: 335
- Stator Dia.: 50mm
- Stator height: 8mm
- Shell Dia.: 58mm
- Thickness: 22mm
- Shaft length: 30mm
- Weight: 138g
- Install size: Botton 25*25mm M3*4
- 6S, with 15*5.5, 16*5.5, 17*5.5 CF propeller.

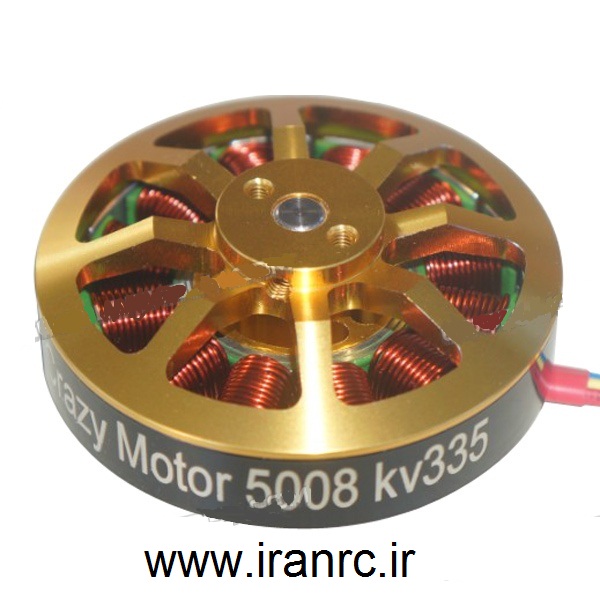

Previous: Crazy Motor 5008 KV335 Brushless Motor 6S for Large Loading Quadcopter Multicopter Black

Next: Crazy Motor 5008 KV335 Brushless Motor 6S for Large Loading Quadcopter Multicopter Silver

     Crazy Crazy Motor Motor

Over 5008 brushless motor rotor

        Military quality   Safe and efficient

Professional aerial multi-axis motor, entertainment, let alone choose the crazy power of the motor to protect the security and stability! All buyers please look crazy Crazy Motor motor, guard against being taken!

OUR 5008 has been used in Japan Fukushima nuclear radiation test multiple axes.

Also flying altitude of 4,000 meters above the test is successful, is used as a counter-terrorism surveillance.CCTV13 & Phoenix News:http://v.ifeng.com/mil/annals/201308/5f0cc08a-7055-41b9-97ba-4a576ee27e5b.shtml

Please copy and paste into the address bar to watch, click invalid.

CNC machining precision for. Whether it is the precision, technology, performance of a multi-axis motor than anyone dare!

Kawasaki 0.2 using silicon steel, high-performance tile magnets, fine imported bearings, smooth operation, high efficiency heat small.

Stator diameter 50MM

Stator stack height 8MM

Housing diameter 58MM

Thickness 22MM

Axis full length 30MM

Weight 138G

Installation dimensions: base 25 * 25MM M3 * 4

Understated silver oar mounting dimensions 12 * 12MM M2.5 * 6 (Tyrant series paddle mounting dimensions 12 * 12MM M3 * 2)

KV335 6S electricity use, with 15 * 5.5,16 * 5.5,17 * 5.5 carbon paddle. Suitable for large multi-axis load axis, shop with sophisticated balancing machines, ensuring movement level tone. Powerful, safe and efficient!

5008 + 1755 6S with large capacity battery, can break one hour of flight time!

Lists some simple calculation: for example axis takeoff weight 4KG, election 5008 + 17X5.5 paddle, 6S 10000MAH, in order to calculate the 24V battery, 24V * 10AH = 240WH (Wh)

Motor when power is 108W single 1010G * 4 = 432W total power

240WH / 432W = 0.5555H * 60 minutes = 33.33 minutes

Express: the pass / SF Paid
