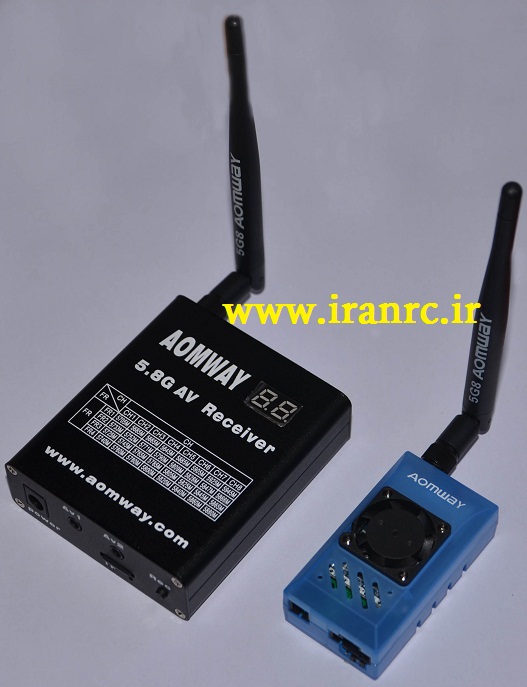

 AOMWAY  5.8G 1000mw Tx & RX w/DVR

5.8G TX feature:

1.5.8G FM audio video synchronous transmission.

2.1000mw 30.5db.

3.built-in two kinds of frequency selectable 5740-5860MHz / 5705-5925MHz.

4.TX channel CH1-7+CH1-8.

5.with 5dB antenna.

6.light weight 43g (not including antenna).

7.stereo, left and right channel independent transmission.

8.full system PAL / NTSC.

9.input voltage range DC9-16v.

10.dimension 60*33*20mm.


RX feature:

1.band:FR1 5705-5945MHZ FR2 5733-5866MHZ

FR3 5725-5865MHZ FR4 5740-5860MHZ.

2.DVR audio and video recording. 720p D1 format.

3.video compression standard MJPG.

4.video output format AVI.

5.video output mode PAL. when buying can choose N system.

6.TF card memory, maximum support 64GB.

7.high sensitivity: -95%.

8.input voltage 7-25v. (2-6s).

9.power: DC12v 170mA.

10.channel 32, digital display.

11.volume 80*70*25mm aluminum box.

12.weight: 126g (not including antenna).
