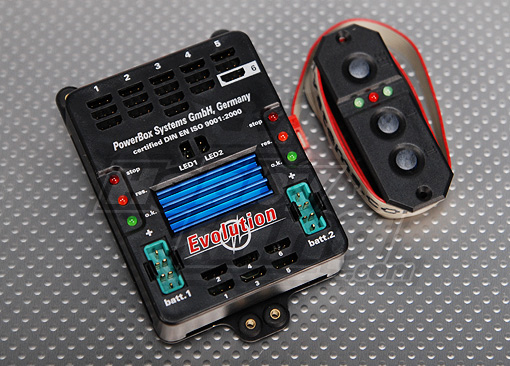

PowerBox Evolution
The PowerBox Evolution is a modern power supply system containing all the electronics components required to power modern receivers, servos and models.Every single element, ICs, micro-controller and the electronic circuit which is essential to a reliable power supply is duplicated!
This range of functions makes the powerBox Evolution the ideal battery backer for large model aircraft with wingspans in the range 2.0~2.6m, as well as helicopters and gliders.
Features:
Double linear voltage stabilisation for receiver and servos, supplying 5.90 Volts
Power handling up to 2 x 10 Amps
For 7.4 Volt LiPo batteries (PowerBox Battery) or 5-cell NC or NiMH batteries
5 channels remotely accessed from the receiver
5 two-way signal amplifiers
16 servo sockets on the backer
Interference suppression for all 16 servo inputs (no ferrite rings required)
Independent IC-controlled voltage monitors (LED chains)
Two external ultra-bright warning LEDs
Minimum voltage memory (low voltage memory) for both batteries, can be read individually
Two integral electronic switches, controlled by the SensorSwitch
Operating voltage range 4.0 to 9.0 Volts
Temperature range -10 to +55C
Voltage loss approx. 0.35 Volts
Current drain 25 mA
Weight only 115 grams complete with all cables and SensorSwitch
Power handling up to 2 x 10 Amps
For 7.4 Volt LiPo batteries (PowerBox Battery) or 5-cell NC or NiMH batteries
5 channels remotely accessed from the receiver
5 two-way signal amplifiers
16 servo sockets on the backer
Interference suppression for all 16 servo inputs (no ferrite rings required)
Independent IC-controlled voltage monitors (LED chains)
Two external ultra-bright warning LEDs
Minimum voltage memory (low voltage memory) for both batteries, can be read individually
Two integral electronic switches, controlled by the SensorSwitch
Operating voltage range 4.0 to 9.0 Volts
Temperature range -10 to +55C
Voltage loss approx. 0.35 Volts
Current drain 25 mA
Weight only 115 grams complete with all cables and SensorSwitch
