FO-XX Readyset

FO-XX Readyset
[7 مهر 1394 ساعت 03:58] ماشین کنترلی سوختی.Cars engines > FO-XX Readyset

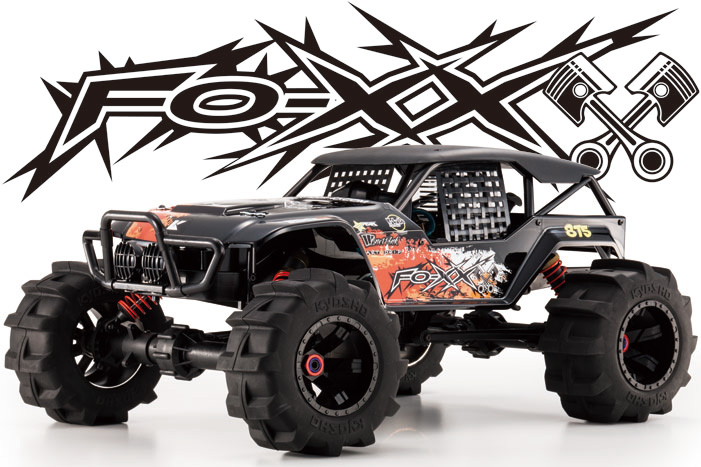

 1/8 25-class Engine 4WD Monster Truck





نام ماشين FO-XX GP w/KT-231P 1/8 GP 4WD
کمپانی ژاپن- KYOSHO
حجم موتور KE25
گیربکس سه دنده
سرعت نهایی 85 کیلومتر در ساعت

Includes pre-painted formula off-road body. Hinged front opening allows for easy maintenance.



Front is equipped with fender and inner cover that prevents dirt from the tires getting inside while also complimenting scale appearance.



The polished welded manifold and tuned silencer compliment the grey anodized head on the easy to start KE25 engine.

Includes removable intake limiting reducer. Minimizes lean mixture from over tightening of the needle and allows easy and safe break-in of the engine.



Low height radio box allows realistic recreation of scale body form and realizes a lower center of gravity for improved cornering and driving stability.



With plenty of suspension stroke, the optimal suspension arm position at 1G delivers improved maneuverability. High strength suspension arm delivers tight handling.

3-piece clutch shoe produces smooth gear mesh and efficient power while the 3-speed transmission delivers powerful traction and extended acceleration.



Paddle tread pattern tires deliver tremendous running power. 17mm wheel hubs are compatible with both Inferno and market size wheels.



Feature-packed 2.4GHz KT-200 transmitter allows settings to be freely adjusted. High&#8211;torque KS-203 servo incorporates precision metal gears for strength and accuracy.




  • Fully factory assembled Readyset.
  • Formula off-road body style exudes realism.
  • 3-speed A/T makes full use of the power band and is included as standard.
  • Shaft and chain 4WD mechanism transfers traction efficiently.
  • Includes formidable black anodized side plate chassis.
  • Rigid front and rear axles feature robust casing.
  • 150cc fuel tank provides long run times.
  • Unique design of steering knuckle delivers increased steering angle.
  • Pre-painted and pre-cut body with decals applied.
  • Solid steel bevel gears equipped on rear diff gear.
  • Full ball bearing specifications use 22 bearings through the drive train.
  • Low height radio box delivers low center of gravity and effectively protects R/C system from dirt.
  • Paddle tread pattern tires provide sure-footed grip.
  • 17mm wheel hubs and nuts are compatible with the Inferno series.
  • Equipped with large capacity big bore shocks as standard.
  • Front - rear interchangeable suspension arms provide efficient maintenance and parts utilization.
  • Long wheelbase and low down suspension produces dynamic speed as well as stability in straight line running and cornering.
  • < Required for Operation >

    • 8 x AA sized alkaline batteries for transmitter & receiver
    • Fuel
    • 2 x D-size alkaline batteries for plug heater
    Chassis Technical Data
    Length 545mm
    Width 383mm
    Height 248mm
    Ground Clearance 54.5mm
    Wheelbase 360mm
    Tread (F/R) 312mm / 312mm
    Tire(F/R) Φ155×70.5mm / Φ155×70.5mm
    Gear Ratio 25.7/19.8/15.6:1
    Weight 4,200g approx.
    Engine KE25 with recoil starter
