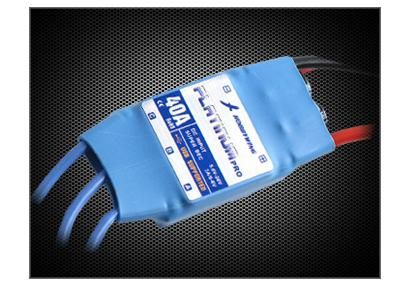

Hobbywing Platinum 40A ESC Speed controller
The Hobbywing Platinum series are based on an all new powerful microprocessor usually reserved for high speed car ESCs. The new CPU means ultra fast sync timing, crisper throttle response, less battery load and reduced FET heat buildup.
Specification:
|
Output |
Continuous 40A, burst 57A |
|
Input |
2-6 cells lithium battery or 5-18 cells NIMH battery |
|
BEC |
Twin voltage selection, 5.25v and 6v. |
|
Control Signal Transmission |
Optically coupled system |
|
Max Speed |
210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM. |
|
Length (mm) |
59 |
|
Width (mm) |
27 |
|
Height (mm) |
12 |
|
Weight (g) |
38 |
Features:
- High performance microprocessor (24khz) brings out the best compatibility with all kinds of motors and the highest driving efficiency.
- Wide-open heat sink design to get the best heat dissipation effect.
- Improved Normal, Soft, Very-Soft start modes, compatible with aircraft and helicopter.
- Smooth, linear, quick and precise throttle response.
- Throttle signal transferred through optically coupled system to avoid the electromagnetic interference.
- Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
- Governor mode for helicopter.
- The firmware of the ESC can be updated through the USB adapter.
- User programmable via Tx, Programming card or pc USB port.
Not compatible with non Hobbywing Digital esc programming card.
