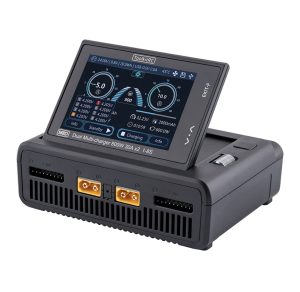

M8D——THE FIRST TOUCHSCREEN CHARGER
Touch Screen Capacitive | Cool Supercar Dial | 1600W/50A MAX Power | 3.5″ Flip Screen 480×320px | 65w Fast Charger
●New UI Design: Highly adapted to the use of touch-screen habits;
●Extra Large Flip Screen Design: 80° adjustable angle, 3.5″ IPS;
●Dual Channels 8S Independent Output: Total output power up to 1600W, Synchronized mode supports 50A charging;
●65W Powerful Fast Charging;
●Battery Destruction Function: Provide safer disposal of used batteries;
●Dual Fans with Infinitely Adjustable Speed, More Silent:According to the real-time temperature and power, precise control of speed, high efficiency and low noise
●TF Card Logging: Full support for charging and discharging data storage and analysis;
SPEC
| Input | ۱۰-49V @MAX 60A |
| Battery type | LiPo LiHV LiFe Lilon LTO@1-8S NiMH @1-20S Pb @1-12S |
| Balance current | 2000mA @ 4.2V |
| Charging power | 800W@MAX 30A*2 (Asynchronous mode)1600W@MAX 50A (Synchronous mode) |
| Discharging power | 800W @MAX 30A *2 Recycle mode40W@10A Normal mode |
| USB-C output | 65W@5.0-20.0V or Upgrade Tip: when input under 10~36V, the 65W USB-C output is available |
| Product size | ۱۳۰×۹۷×42mm |
| Product weight | 450g |
| Pack size | ۱۴۰×۱۱۰×50mm |
| Pack weight | 700g |
| LCD | IPS 3.5” LCD 320×480px |
| Touch panel | Capacitive |

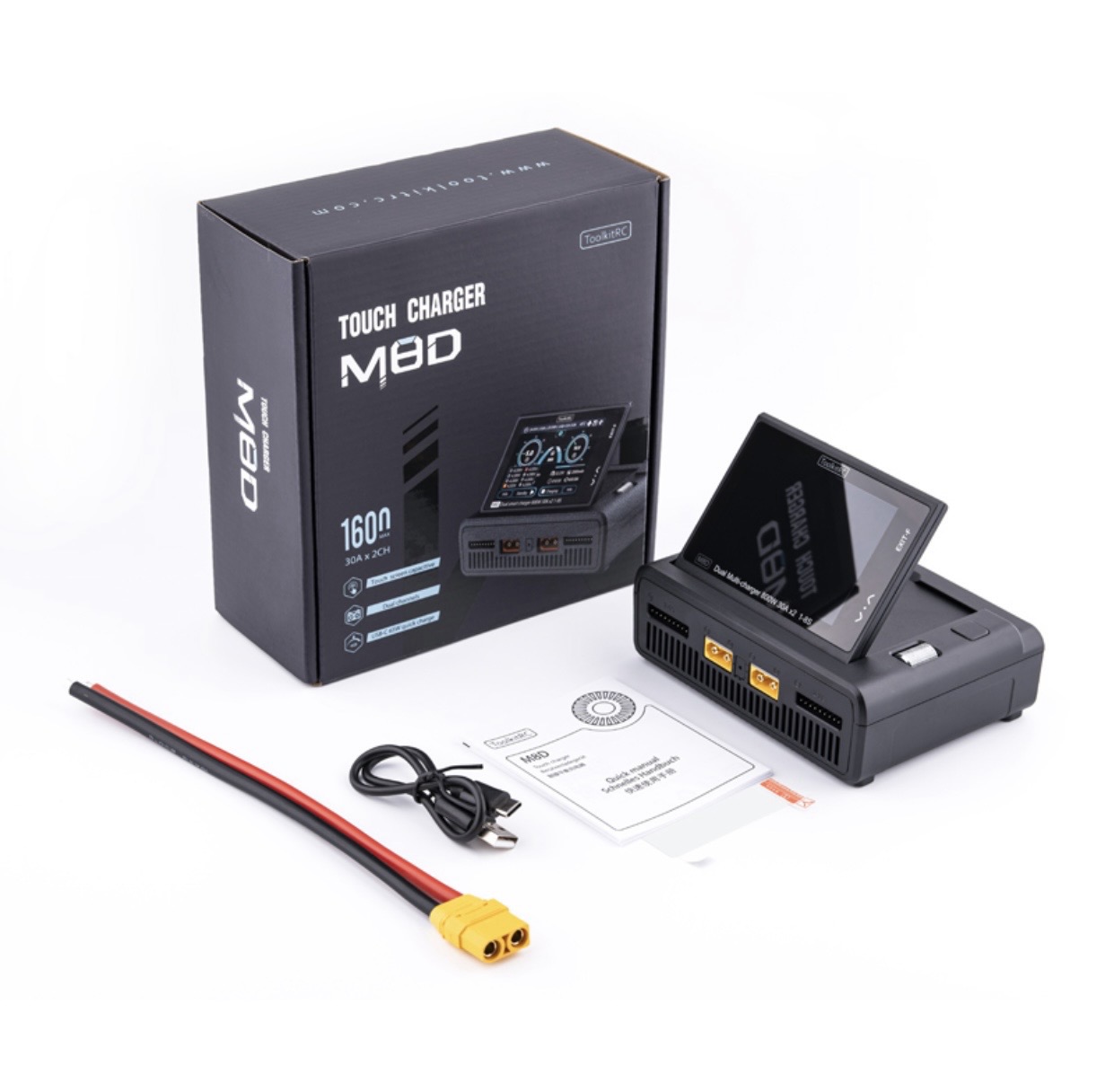

IN THE BOX
M8D Charger × ۱, USB-C Cable × ۱, XT90 Input Cable × ۱, Manual × ۱, Screen Protector × ۱
Take a Closer Look
