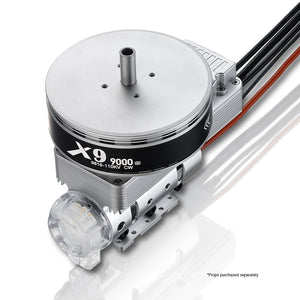

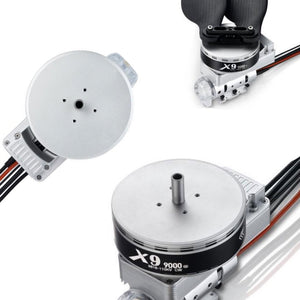

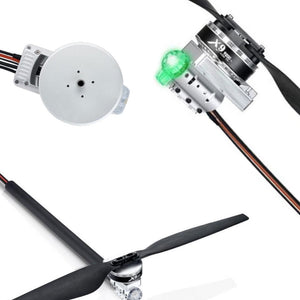

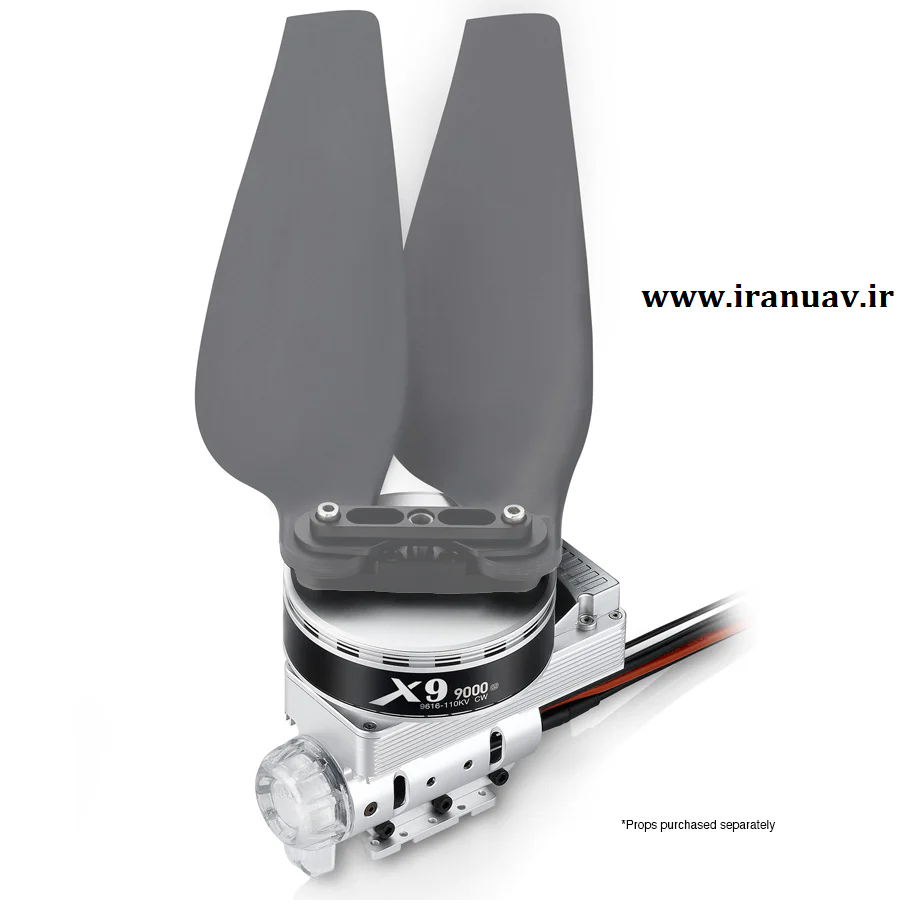

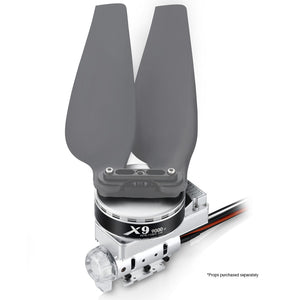

XRotor X9 system
موتور و اسپید کنترل X9 برند Hobbywing به همراه ملخ و پایه موتور
- نام محصول: X9 Power System Combo
- برند : Hobbywing
- همراه با موتور ، اسپیدکنترل ، ملخ و پایه موتور
- ملخ ۳۴۱۱ تاشو کربن
- ولتاژ موتور : 110kv
- وزن : ۱۴۰۰ گرم
Integrated Propulsion system
This product is designed and used for Agricultural application or logistics transportation.
Order procedure:
The COMBO-XRotor Pro-X9 brushless power system is a plant protection power system that adapts to uniaxial 7-9.5kg load. The maximum pulling force of uniaxial is 19.2kg, integrated with a 40mm carbon fiber tube arm. The waterproof grade is IPX7. It is resistant to rainwater, pesticides, salt spray, high temperature, sand and dust, impact, mud, and soil. ESC FOC-motor PMS system has optimized computing, with multiple protection functions such as power-on self-check, power-on voltage abnormal protection, overcurrent protection, lock-up protection and etc. as well as real-time data transmission.
Specifications:
| Model | X9 CM9616 110KV D40 – UART (Prop is not included) |
 | |
| p/n | ۳۸۰۴۰۳۱۱ (۳۰۴۱۰۰۳۰۰۲۳) / ۳۸۰۴۰۳۱۲ (۳۰۴۱۰۰۳۰۰۲۴) |
| Max Thrust | ۱۹.2kg/Axis (46V, Sea Level ) |
| Recommended LiPo Battery | 12S LiPo |
| Recommended Takeoff Weight | ۷-۹.5kg/Axis (46V, Sea Level ) |
| Product Weight (ESC/Motor/Prop) | 1400g |
| Waterproof Rating | IPX7 |
| Operating Temperature | -۲۰-۵۵℃ |
| Motor | |
| Stator size | ۹۶*16mm |
| KV Rating | 110KV |
| O.D of Carbon Fiber Tube | φ۴۰ |
| Bearing | Imported Waterproof Bearing |
| ESC | |
| Recommended LiPo Battery | ۶-12S LiPo |
| PWM Input Signal Level | ۳.3V/5V (Compatible ) |
| Throttle Signal Frequency | ۵۰-500Hz |
| Operating Pulse Width | ۱۱۰۰-۱۹۴۰ μs (Fixed or cannot be Programmed ) |
| Max. Input Voltage | ۵۲.2V |
| Max. Input Current (Cont.) | ۱۲۰ A (w/ Good Heat Dissipation ) |
| Max. Peak Current (10s) | ۱۵۰ A (w/ Good Heat Dissipation ) |
| BEC | No |
| Nozzle Mounting Holes | φ40mm |
| Recommended Propeller | |
| Diameter×Pitch | ۳۴.۷×۱۱ inch (Purchased separately) |
| Weight | – |
| UART or CAN version available, B2B bulk pricing available | |
 |
IMPORTANT NOTE;
- X9 series is designed for Agricultural application or logistics transportation. farmland. Agricultural UAV features high thrust, heavy loaded, good anticorrosive and antirust performance. Due to heavy motor/ESC, its thrust effect is lower compared to aerial photography UAV. It focuses on the durability and long term reliability. In contrast, Aerial photography UAV features a high thrust effect. It requests highly on reliability and stability than plant protection UAV. Due to lightweight motor / ESC, it is not recommended to use it in a severe / harsh environment.
- Made to order available
